1.True deep cycle AGM-GEL technology-GREEN SOLUTION
2.Over 99.99% virgin lead for grid plate
3. Carbon active material
4. Electrolyte + Gel for longer cycle life
5. Heavy duty grid/paste design for deep cycle application
6. Maintenance free, non-spillable, valve-regulated
7.Double separator configuration :long cycle life &High energy density and super anti-vibration design
8.Low self-discharge for longer shelf lifetification
Electrical Specifications
Voltage(V) |
Capacity (AH) |
Reserve Capacity (Min) | ||||||
100HR |
20HR |
10HR |
5HR |
3HR |
@25A |
@56A |
@75A | |
6 |
270 |
245 |
232 |
210 |
196 |
530 |
206 |
145 |
Physical Specifications
Model |
Dimensions (mm/inches) |
Weight (kg/Ibs) |
Terminal Type (Standard) |
Case Material | |||
Length |
Width |
Height |
Total Height | ||||

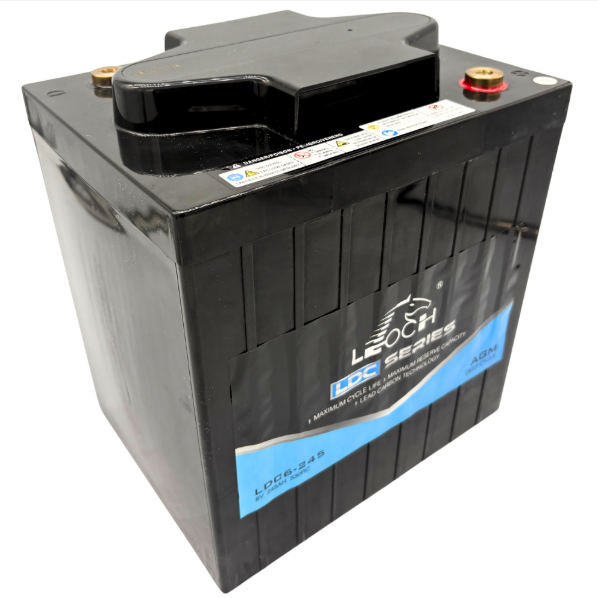

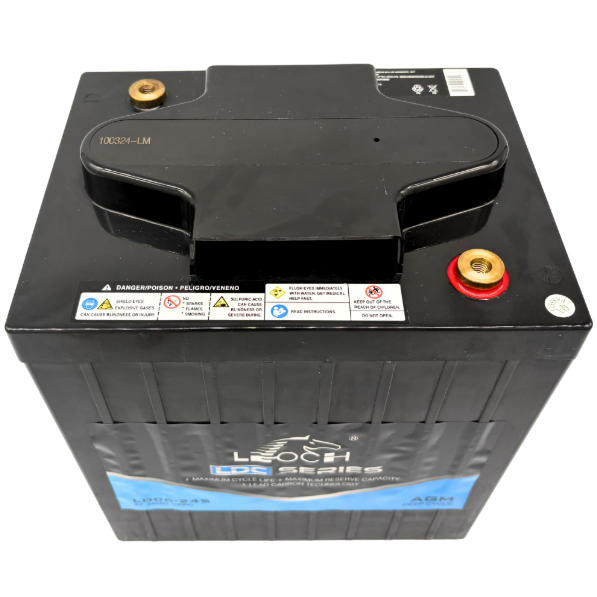

LDC6-245 |
243 (9.57) |
187.5 (7.38) |
275 (10.83) |
275 (10.83) |
32.4 (71.4) |
T11 |
ABS |
| Model | Rated Voltage | Rated Capacity(AH) | Dimension(mm) | Weight | |||||
| V | 20hr | 5hr | 3hr | L | W | H | TH | kg | |
| LDC12-90C | 12 | 90 | 77 | 73 | 260 | 168 | 208 | 214 | 23.1 |
| LDC12-90F | 12 | 90 | 77 | 65 | 260 | 168 | 211.5 | 217.5 | 23.4 |
| LDC12-90-G24-T | 12 | 85 | 73 | 68 | 260 | 168 | 208 | 214 | 23.5 |
| LDC12-90-G24-DT | 12 | 85 | 73 | 68 | 260 | 168 | 208 | 232.5 | 23.8 |
| LDC12-100 | 12 | 100 | 89 | 80 | 260 | 168 | 211 | 214 | 25.8 |
| LDC12-105-G27-T | 12 | 105 | 88 | 78 | 306 | 168 | 208 | 214 | 27.3 |
| LDC12-105-G27-DT | 12 | 105 | 88 | 78 | 306 | 168 | 208 | 232.5 | 27.8 |
| LDC12-115-G31-DT | 12 | 115 | 95 | 85 | 330 | 173 | 212 | 237 | 31.7 |
| LDC12-115-G31-T | 12 | 115 | 95 | 85 | 330 | 173 | 212 | 220 | 31.4 |
| LDC12-120 | 12 | 120 | 106 | 100 | 330 | 173 | 213 | 220 | 32.8 |
| LDC12-140 | 12 | 144 | 126 | 120 | 408 | 176 | 224.5 | 224.5 | 39.2 |
| LDC12-145 | 12 | 148 | 122 | 118 | 340 | 172 | 280 | 286 | 42.5 |
| LDC12-150-GC12 | 12 | 150 | 136 | 125 | 327 | 180 | 274 | 274 | 42.2 |
| LDC12-180 | 12 | 180 | 162 | 150 | 483 | 170 | 238.5 | 238.5 | 50.1 |
| LDC12-220 | 12 | 220 | 190 | 170 | 387 | 180 | 346 | 368 | 59.7 |
| LDC12-245 | 12 | 245 | 210 | 185 | 387 | 180 | 346 | 368 | 64.3 |
| LDC6-210-GC2 | 6 | 210 | 175 | 165 | 260 | 180 | 252 | 274 | 27.2 |
| LDC6-210B | 6 | 210 | 175 | 165 | 260 | 180 | 252 | 274 | 30.4 |
| LDC6-210C | 6 | 210 | 175 | 165 | 260 | 180 | 252 | 275 | 30.4 |
| LDC6-400C | 6 | 400 | 342 | 310 | 295 | 180 | 406 | 428 | 54.2 |
| LDC6-400D | 6 | 400 | 342 | 310 | 295 | 180 | 406 | 429 | 54.2 |
| LDC6-224-GC2 | 6 | 224 | 192 | 173 | 260 | 180 | 247 | 253 | 30.5 |
| LDC6-265-GC2 | 6 | 268 | 220 | 200 | 260 | 180 | 265 | 268 | 32.9 |
| LDC6-265C | 6 | 265 | 220 | 200 | 260 | 180 | 265 | 268 | 32.9 |
| LDC6-245 | 6 | 245 | 210 | 196 | 243 | 187.5 | 275 | 275 | 32.4 |
| LDC6-270 | 6 | 270 | 235 | 219 | 260 | 180 | 263 | 268 | 34.7 |
| LDC6-275 | 6 | 275 | 240 | 225 | 295 | 180 | 274 | 296 | 36.5 |
| LDC6-315 | 6 | 315 | 250 | 235 | 295 | 180 | 346 | 369 | 44.0 |
| LDC6-350 | 6 | 350 | 305 | 285 | 295 | 180 | 346 | 368 | 48.2 |
| LDC6-400-L16 | 6 | 400 | 342 | 310 | 295 | 180 | 406 | 428 | 54.2 |
| LDC8-165-GC8 | 8 | 165 | 140 | 125 | 260 | 180 | 252 | 274 | 29.3 |
| LDC8-195 | 8 | 195 | 163 | 150 | 262 | 180 | 278.5 | 278.5 | 34.5 |
| LDC8-188 | 8 | 188 | 153 | 135 | 262 | 180 | 278.5 | 278.5 | 31.5 |
| LDC8-210-GC8H | 8 | 210 | 180 | 165 | 260 | 182 | 295 | 298 | 40.5 |
